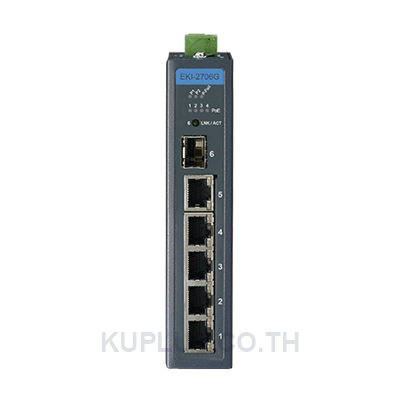

Name: 5GE+1G SFP Unmanaged Ind. PoE Switch W/T
Brand: ADVANTECH
SKU: EKI-2706G-1GFPI-BU
Availability: OutOfStock

5GE+1G SFP Unmanaged Ind. PoE Switch W/T

ADVANTECH

5GE+1G SFP Unmanaged Ind. PoE Switch W/T

รหัสสินค้า: EKI-2706G-1GFPI-BU

฿0

สอบถามสต็อก

รายละเอียดสินค้า

Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
Supports jumbo frame transmission up to 9 kbytes
DIN-rail with IP30 metal mechanism
Redundant 24~48 VDC power input(BE Version)
Provides broadcast storm protection
4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports

Category	Attribute	Value
Power	Power Connector Type	6-pin removable screw terminal (power & relay)
Power	Power Consumption	Max 2W
Power	Power Input (DC)	24 ~ 48 VDC
Interface	Port Number	6
Environment	Relative Humidity	10~95%
Environment	Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Environment	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)
Mechanism	Dimensions (W x H x D)	30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mechanism	Enclosure (Metal)	Metal
Mechanism	IP Rating	IP30
Mechanism	Mounting	DIN-rail, Wall
Mechanism	Weight	0.45 kg (1.0 lb)
Ethernet Communication	Fiber Transmission Distance	Up to 110 km
Ethernet Communication	RJ-45 Port Connector Type	5 x RJ-45 + 1 x SFP ports
Ethernet Communication	RJ-45 Transmission Distance	100 m
Ethernet Communication	RJ-45 Transmission Speed	10/100/1000 Mbps
Switch Properties	Jumbo Frame	9,216 bytes
Switch Properties	MAC Table Size	2K
Switch Properties	Packet Buffer Size	1M bit
Switch Properties	Switch Fabric Speed	12Gbps
Certification	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification	EMI	CE, FCC Class A
Certification	Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
Certification	Freefall	IEC 60068-2-32
Certification	Safety	UL 62368
Certification	Shock	IEC 60068-2-27
Certification	Vibration	IEC 60068-2-6
MTBF	Method	Telcordia(Relax), GB
MTBF	Time	1,697,086 hours
Warranty	Warranty Period	5 years
PoE Information	PoE Port Number	4
Place of Production	Place of production	Taiwan
